Eaton Pad-Mounted Transformers & Substations
American-Style Pad-Mounted Transformer (Eaton)
Model: Pad-mounted
Compact pad-mounted transformer with under-oil switching and Bay-O-Net/ELSP fusing.
- Voltage
- 6–35 kV
- Capacity
- up to 3.15 MVA
- BIL
- up to 200 kV
- Genuine Eaton product with factory documentation
- Datasheet and drawings available on request
- Installation support and field service from our own crews
Overview
Compact pad-mounted transformer with under-oil switching and Bay-O-Net/ELSP fusing.
Specifications
| Protection | Bay-O-Net fuse with ELSP backup |
|---|---|
| Switching | Two- or four-position loadbreak switch |
| Standards | GB, IEEE |
Ratings are summarized from manufacturer literature. Confirm the exact catalog number and ratings with us before ordering.
Typical applications
More in Pad-Mounted Transformers & Substations
View all
Single-phase pad-mount

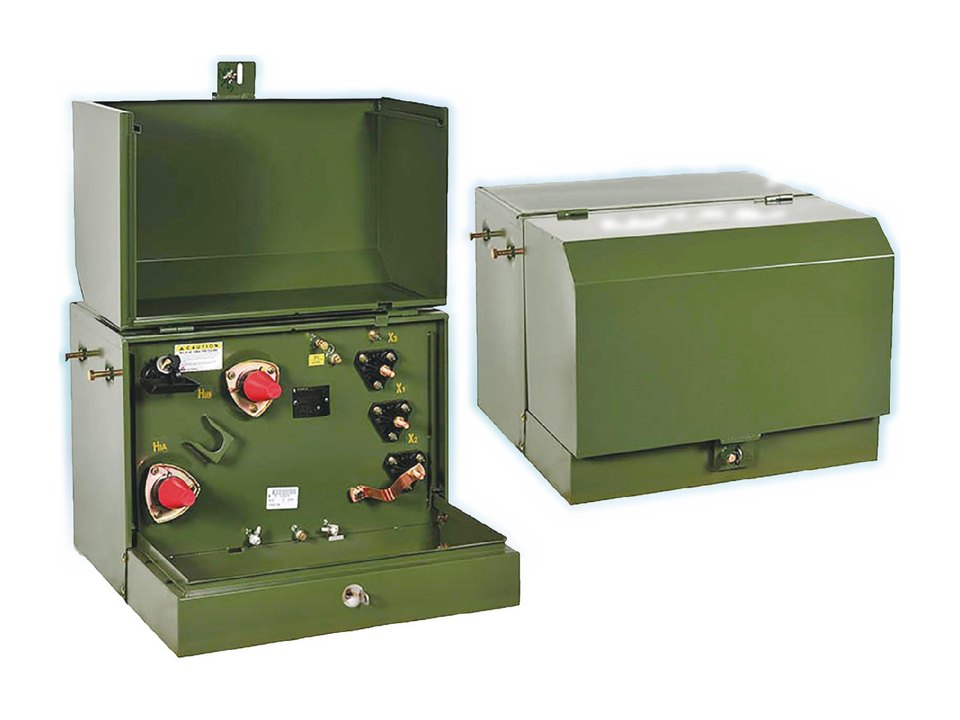

Single-Phase Pad-Mounted Transformer
