Pad-Mounted Transformers & Substations
Pad- and pole-mounted transformers, compact substations and inverter step-up skids for solar, wind and storage.
Single-phase pad-mount
Single-Phase Pad-Mounted Transformer
- Phases
- 1
- Secondary
- 120/240 V
- Efficiency
- DOE 2016
Renewable box transformer
Renewable Step-Up Box Transformer, 10–35 kV
- Voltage class
- 10–35 kV
- Use
- Wind / PV
- Enclosure
- Outdoor
Prefabricated
Prefabricated Cabin Substation
- Delivery
- Factory-tested
- Enclosure
- Steel cabin
- Install
- Plug-and-play
Inverter skid
Integrated Inverter and Step-Up Skid
- Integration
- Inverter + MV
- Delivery
- Single skid
- Use
- PV / BESS
Pad-mounted
American-Style Pad-Mounted Transformer (Eaton)
- Voltage
- 6–35 kV
- Capacity
- up to 3.15 MVA
- BIL
- up to 200 kV
Box substation

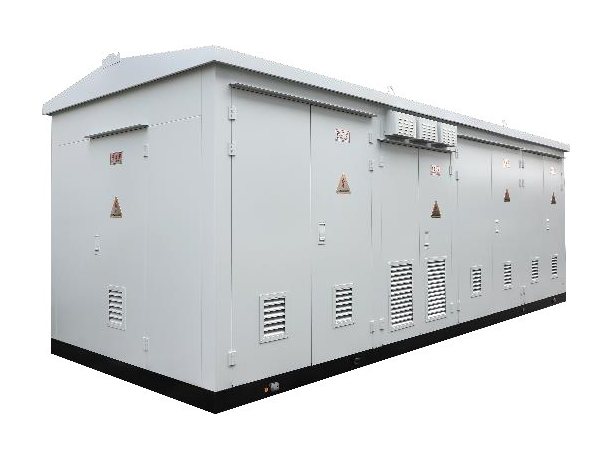

European-Style Prefabricated Substation
- Voltage
- 6–35 kV
- Capacity
- up to 2.5 MVA
- BIL
- up to 200 kV
