LS2 series (Catalog 800-65)
Two-Position Sidewall Loadbreak Switch
- Max voltage
- 15.5–46 kV
- Continuous
- up to 550 A
- BIL
- 200 kV
Pad-Mounted Transformer Components
Loadbreak switches, Bay-O-Net fusing, bushings, elbows and arresters for pad-mounted transformers.
Catalog 800-64
Four-Position Sectionalizing Loadbreak Switch
- Rated voltage
- 15 / 24 / 36 kV
- Continuous
- up to 630 A
- Standards
- IEEE / IEC
MagneX (Catalog 240-33)
MagneX Two- & Three-Phase Interrupter
- Continuous
- 42 A
- Withstand
- 50 kV, 1 min
- Reset
- Field resettable

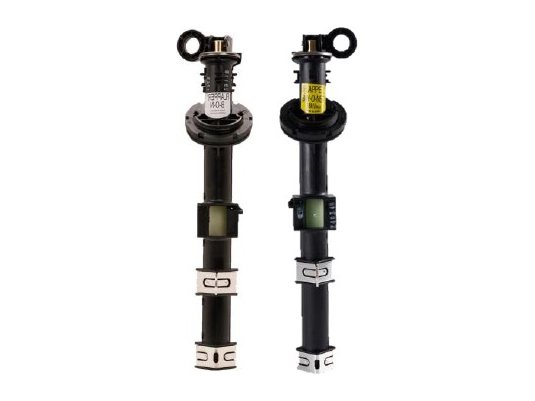

Catalog 240-40
Bay-O-Net Fuse Assembly
- Mounting
- Sidewall / cover
- Operation
- Hotstick, loadbreak
- Option
- Flapper valve
4000358C series (Catalog 240-46)
Dual Sensing Bay-O-Net Fuse Link
- Voltage
- 4.16–34.5 kV
- Interrupting
- up to 3500 A
- Sensing
- Current + oil temp

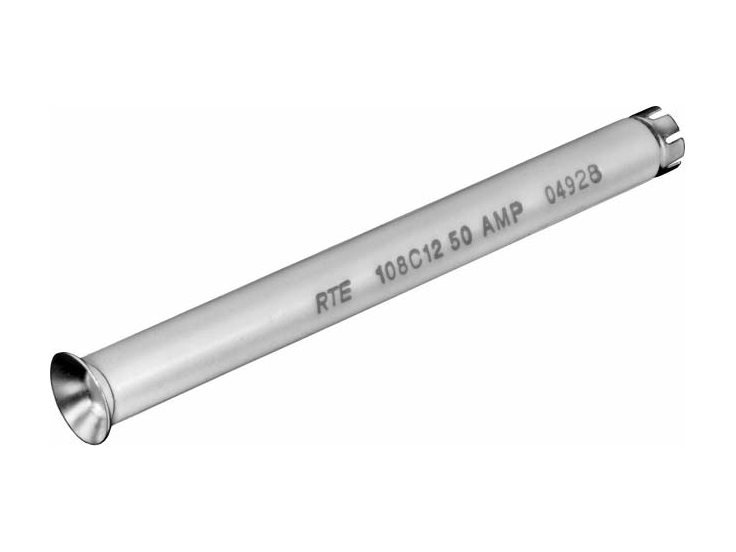

Catalog 240-48
Dual Element Bay-O-Net Fuse Link
- Type
- Dual element
- Fit
- Bay-O-Net holder
- Contacts
- Silver-plated brass
ELSP (Catalog 240-50)
ELSP Current-Limiting Backup Fuse
- Rated voltage
- 8.3–38 kV
- Continuous
- 30–250 A
- Interrupting
- 50 kA

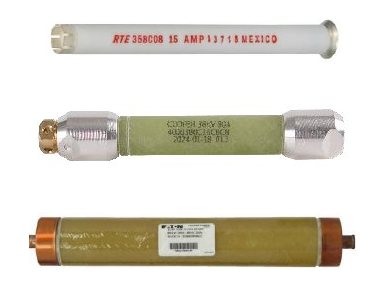

Fuse link family
Bay-O-Net Fuse Links (Current, Dual Sensing, High Overload)
- Voltage
- 8.3–38 kV
- Current
- 3–140 A
- Types
- Current, dual, HAOL

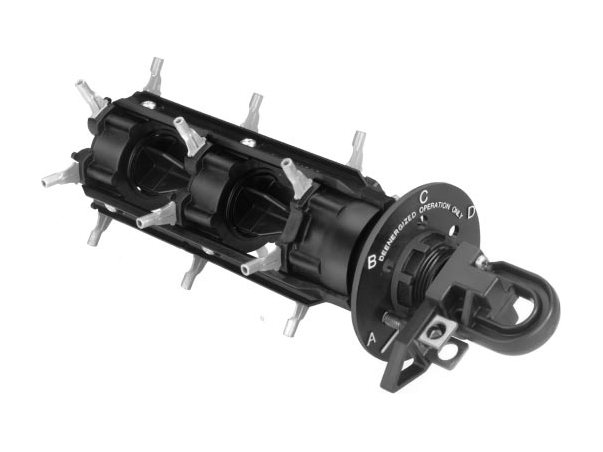

RTE (Catalog 800-57)
100 A Externally Operated Tap Changer
- Current
- 100 A
- Withstand
- 50 kV, 1 min
- Phases
- 1 / 2 / 3
