Two-Position Sidewall Loadbreak Switch
Model: LS2 series (Catalog 800-65)
Under-oil on/off loadbreak switch with stored-spring mechanism operating in less than one cycle, independent of operator speed.
- Max voltage
- 15.5–46 kV
- Continuous
- up to 550 A
- BIL
- 200 kV
- Genuine Eaton product with factory documentation
- Datasheet and drawings available on request
- Installation support and field service from our own crews
Overview
Under-oil on/off loadbreak switch with stored-spring mechanism operating in less than one cycle, independent of operator speed.
Specifications
| Max voltage (ph-ph) | 15.5 / 27.6 / 38 / 46 kV |
|---|---|
| Continuous / switching current | 550 / 400 / 300 / 65 A |
| Momentary withstand | 12 kA sym., 19.2 kA asym. (10 cycles) |
| Fault close | 12 kA sym. (10 cycles) |
| Impulse withstand | 200 kV to ground, 235 kV across open contacts |
| Mechanical life | 2,000 operations |
| Contacts | Tungsten-copper contacts, silver-plated copper blades |
| Mounting | Bolt-in, weld-in bracket or ring mount |
| Fluid | Mineral oil or R-Temp fluid |
| Standards | IEEE C37.71, IEEE C37.72 |
Ratings are summarized from manufacturer literature. Confirm the exact catalog number and ratings with us before ordering.
Typical applications
More in Pad-Mounted Transformer Components
View all

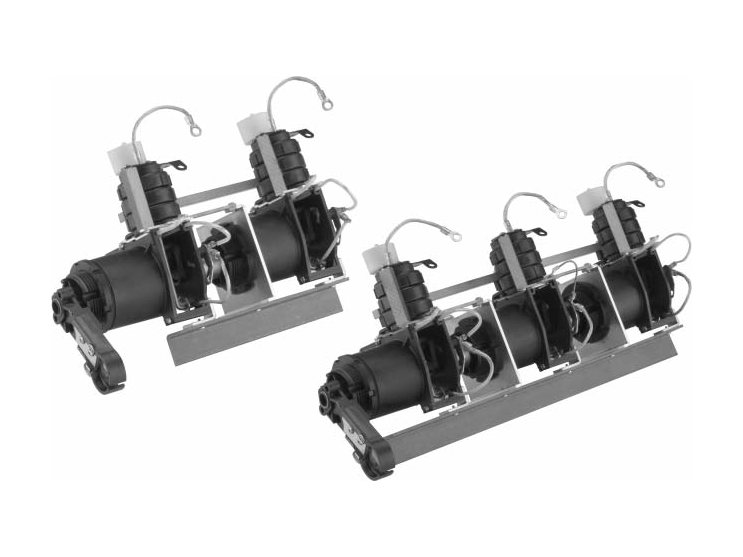

MagneX (Catalog 240-33)
MagneX Two- & Three-Phase Interrupter
- Continuous
- 42 A
- Withstand
- 50 kV, 1 min
- Reset
- Field resettable
Catalog 240-40
Bay-O-Net Fuse Assembly
- Mounting
- Sidewall / cover
- Operation
- Hotstick, loadbreak
- Option
- Flapper valve

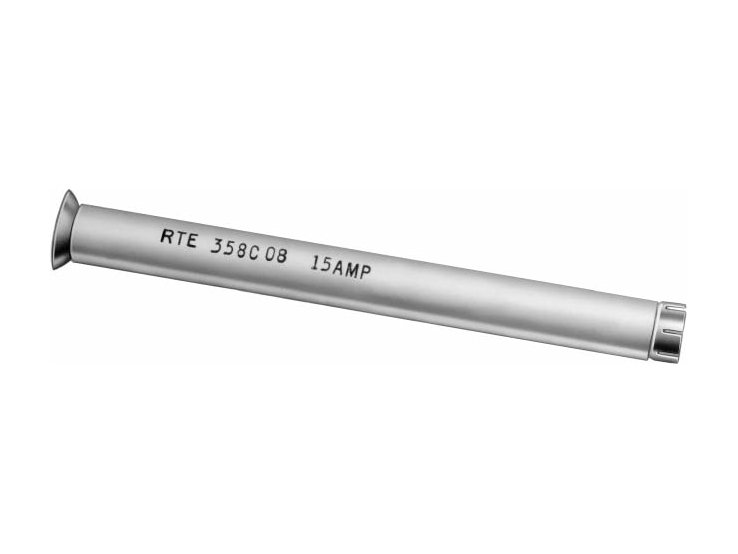

4000358C series (Catalog 240-46)
