Eaton Cooper Power series Pad-Mounted Transformer Components

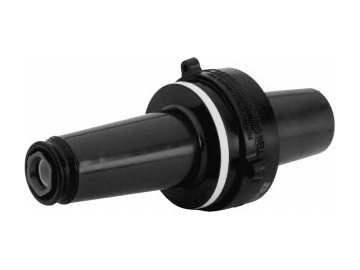

200 A 15 kV Loadbreak Bushing Insert
Model: RTE (Catalog 500-12)
Bushing insert with a patented all-copper current path and yellow latch indicator ring.
- Voltage class
- 15 kV
- Current
- 200 A
- Interface
- IEEE 386
- Genuine Eaton product with factory documentation
- Datasheet and drawings available on request
- Installation support and field service from our own crews
Overview
Bushing insert with a patented all-copper current path and yellow latch indicator ring.
Specifications
| Current path | All-copper, single transfer point |
|---|---|
| Installation | Internal hex broach for torque-controlled install |
| Latch indicator | Yellow ring confirms the elbow is fully latched |
| Insulation | Peroxide-cured EPDM |
| Standards | IEEE 386 |
Ratings are summarized from manufacturer literature. Confirm the exact catalog number and ratings with us before ordering.
