Eaton Cooper Power series Pad-Mounted Transformer Components

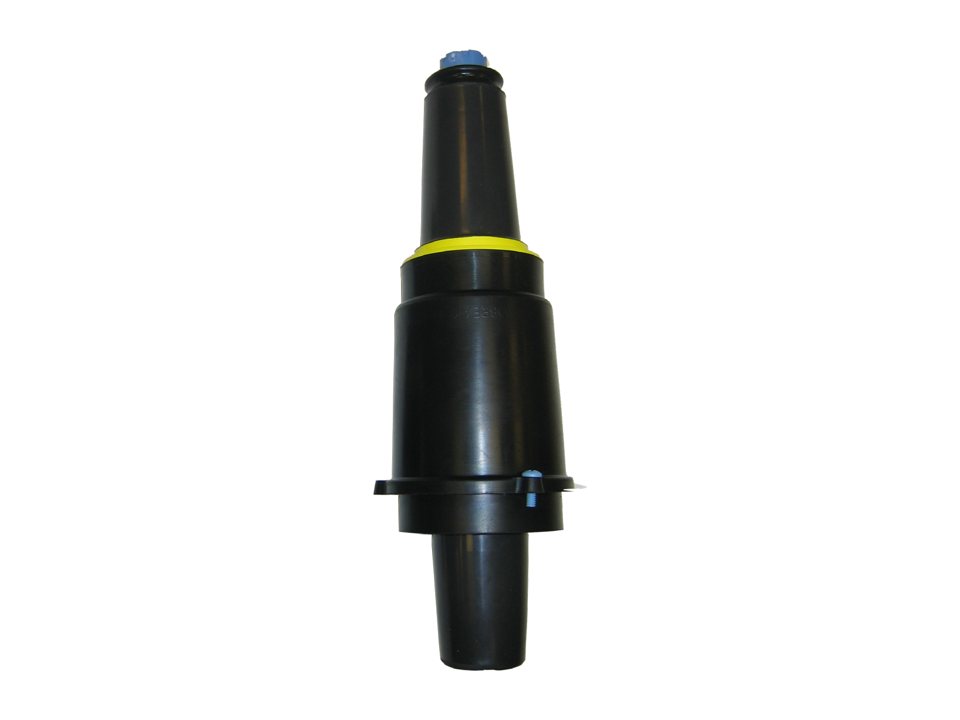

200 A 25 kV Loadbreak Bushing Insert
Model: LBI225 (Catalog 500-26)
25 kV insert in standard and long versions; the long version adds 3 in of clearance for congested faceplates.
- Voltage class
- 25 kV
- Current
- 200 A
- Versions
- Short / long
- Genuine Eaton product with factory documentation
- Datasheet and drawings available on request
- Installation support and field service from our own crews
Overview
25 kV insert in standard and long versions; the long version adds 3 in of clearance for congested faceplates.
Specifications
| Current path | All-copper |
|---|---|
| Long version | Adds 3 in clearance between faceplate and cables |
| Standards | IEEE 386 |
Ratings are summarized from manufacturer literature. Confirm the exact catalog number and ratings with us before ordering.
