Eaton Cooper Power series Pad-Mounted Transformer Components

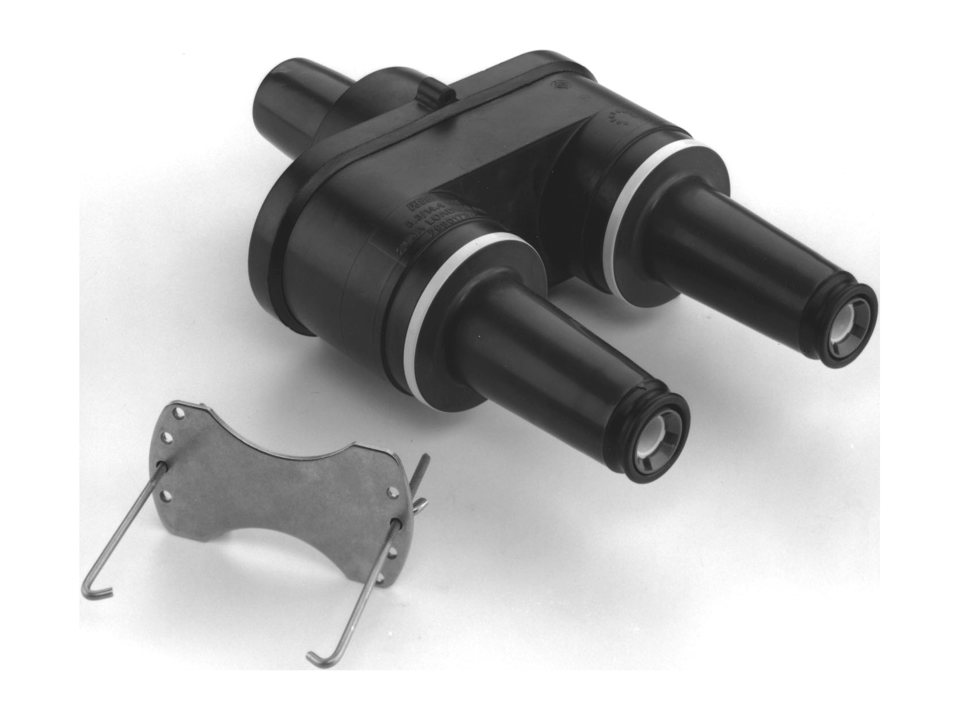

200 A 15 kV Loadbreak Rotatable Feedthru Insert
Model: Feedthru insert
Provides two bushings from one bushing well with 360° orientation via a torque-limiting ratchet.
- Max ph-ph
- 14.4 kV
- Current
- 200 A
- AC withstand
- 34 kV
- Genuine Eaton product with factory documentation
- Datasheet and drawings available on request
- Installation support and field service from our own crews
Overview
Provides two bushings from one bushing well with 360° orientation via a torque-limiting ratchet.
Specifications
| Max rating phase-to-ground | 8.3 kV |
|---|---|
| DC 15 min withstand | 53 kV |
| Ratchet | Torque-limiting, prevents stud breakage |
| Standards | IEEE 386 |
Ratings are summarized from manufacturer literature. Confirm the exact catalog number and ratings with us before ordering.
