Eaton Cooper Power series Pad-Mounted Transformer Components

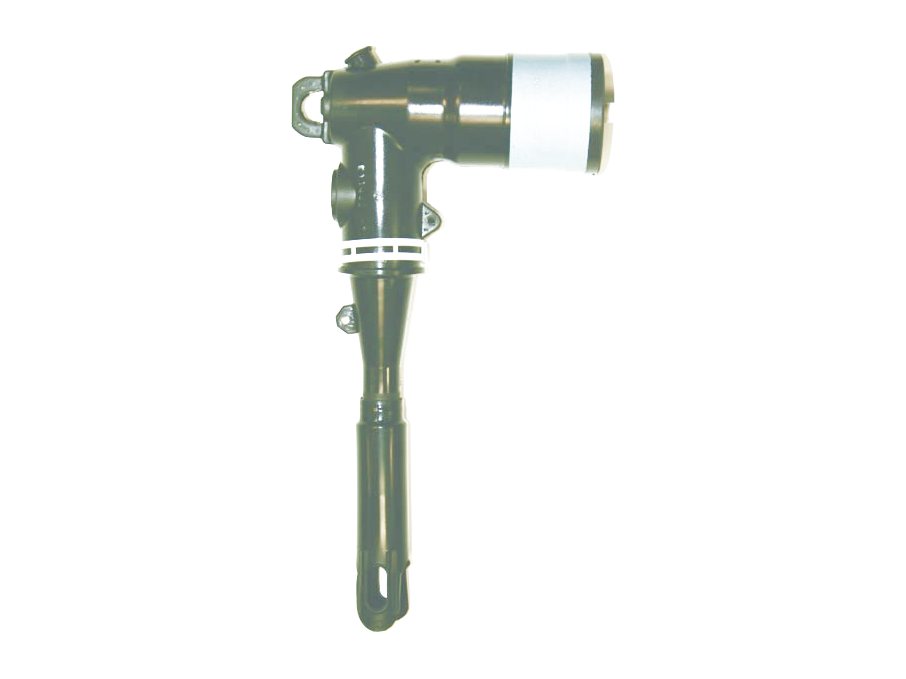

200 A 25 kV Loadbreak Elbow with Integral Jacket Seal
Model: Catalog 500-28
Standard loadbreak elbow covering a wide cable range with three sizes and optional integral jacket seal.
- Voltage class
- 25 kV
- Current
- 200 A
- Cable
- AEIC / ICEA
- Genuine Eaton product with factory documentation
- Datasheet and drawings available on request
- Installation support and field service from our own crews
Overview
Standard loadbreak elbow covering a wide cable range with three sizes and optional integral jacket seal.
Specifications
| Insulation | Peroxide-cured EPDM |
|---|---|
| Connector | Aluminium barrel inertia-welded to copper lug |
| Standards | IEEE 386 |
Ratings are summarized from manufacturer literature. Confirm the exact catalog number and ratings with us before ordering.
